1 Guided Lensless Polarization Imaging

Guided Lensless Polarization Imaging

Noa Kraicer noakraicer0@gmail.com
Erez Yosef erez.yo@gmail.com
Raja Giryes raja@tauex.tau.ac.il
Tel Aviv University · School of Electrical Engineering, Faculty of Engineering
CVPR 2026 — Findings
Paper Code 🤗 Models 🤗 Stage-I Data

Abstract

Polarization imaging captures the polarization state of light, revealing information invisible to the human eye yet valuable in domains such as biomedical diagnostics, autonomous driving, and remote sensing. However, conventional polarization cameras are often expensive, bulky, or both, limiting their practical use. Lensless imaging offers a compact, low-cost alternative by replacing the lens with a simple optical element like a diffuser and performing computational reconstruction, but existing lensless polarization systems suffer from limited reconstruction quality.

To overcome these limitations, we introduce an RGB-guided lensless polarization imaging system that combines a compact polarization–RGB sensor with an auxiliary, widely available conventional RGB camera providing structural guidance. We reconstruct multi-angle polarization images for each RGB color channel through a two-stage pipeline: a physics-based inversion (FISTA or ADMM) recovers an initial polarization image, followed by a Transformer-based fusion network (adapted from SwinFuSR) that refines this reconstruction using the RGB guidance image from the conventional camera.

Our two-stage method significantly improves reconstruction quality and fidelity over lensless-only baselines, generalizes across datasets and imaging conditions, and achieves high-quality real-world results on our physical prototype lensless camera without any fine-tuning.

Imaging System

RGB-guided lensless polarization imaging system: (a) optical setup; (b) custom polarization mask; (c) captured lensless image under front illumination with two orthogonally polarized projectors; and (d) reconstructed grayscale polarization result, visualized by mapping the 0°, 45°, and 90° outputs to the R, G, and B channels.

Optical setup

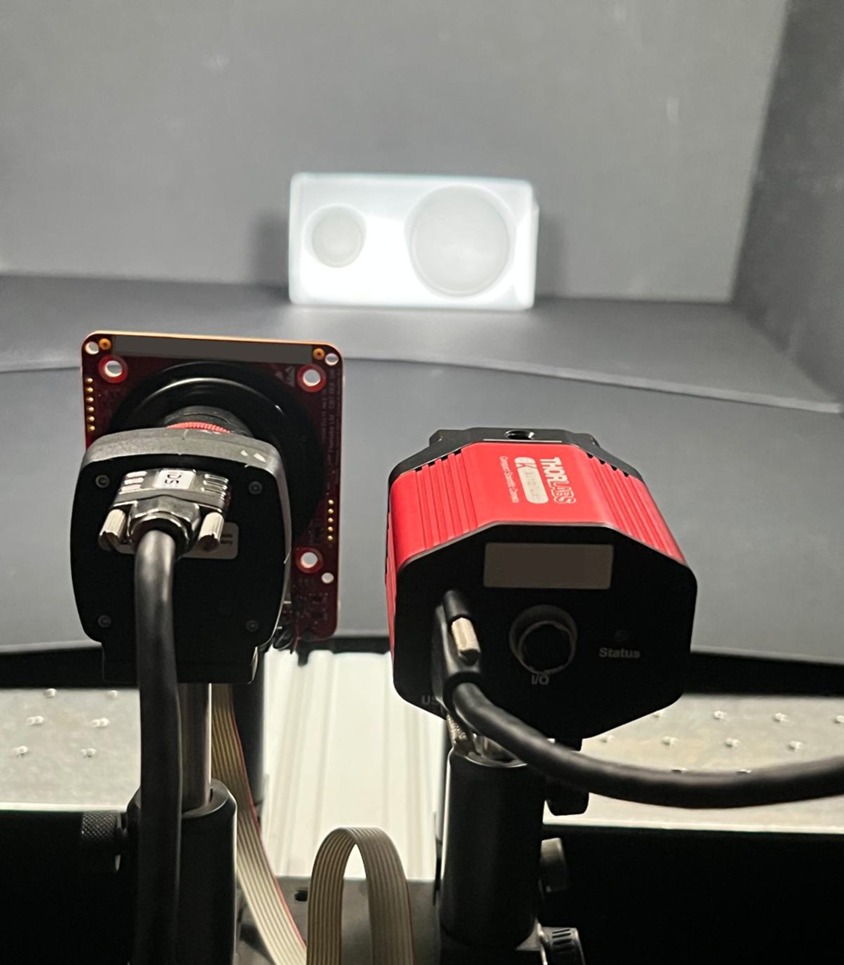

(a) Optical setup
Polarization mask

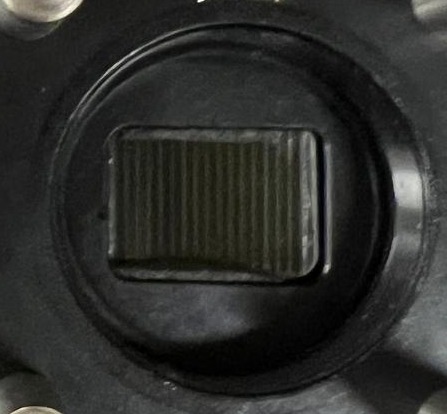

(b) Self-fabricated polarization mask
Lensless capture

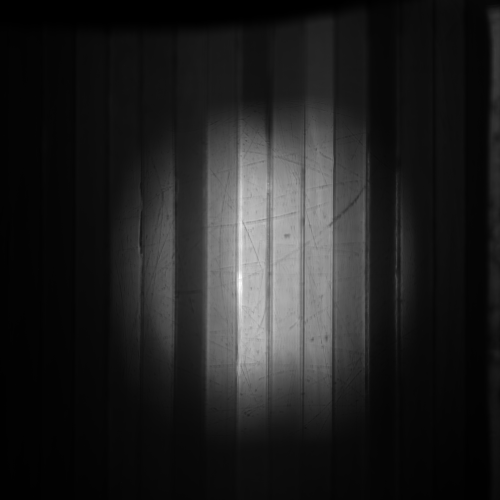

(c) Captured lensless polarization image
Reconstructed result
(d) Reconstructed polarization result

Method

The pipeline has two stages. Stage I (physics-based reconstruction): polarization intensity images (color or grayscale) are recovered from lensless measurements using iterative optimization (FISTA or ADMM) with a 3D total-variation prior. Stage II (RGB-guided deep refinement): a Transformer-based fusion network refines the Stage-I reconstruction using a coarsely aligned RGB guidance image. The refinement network is adapted from SwinFuSR (Arnold et al., 2024).

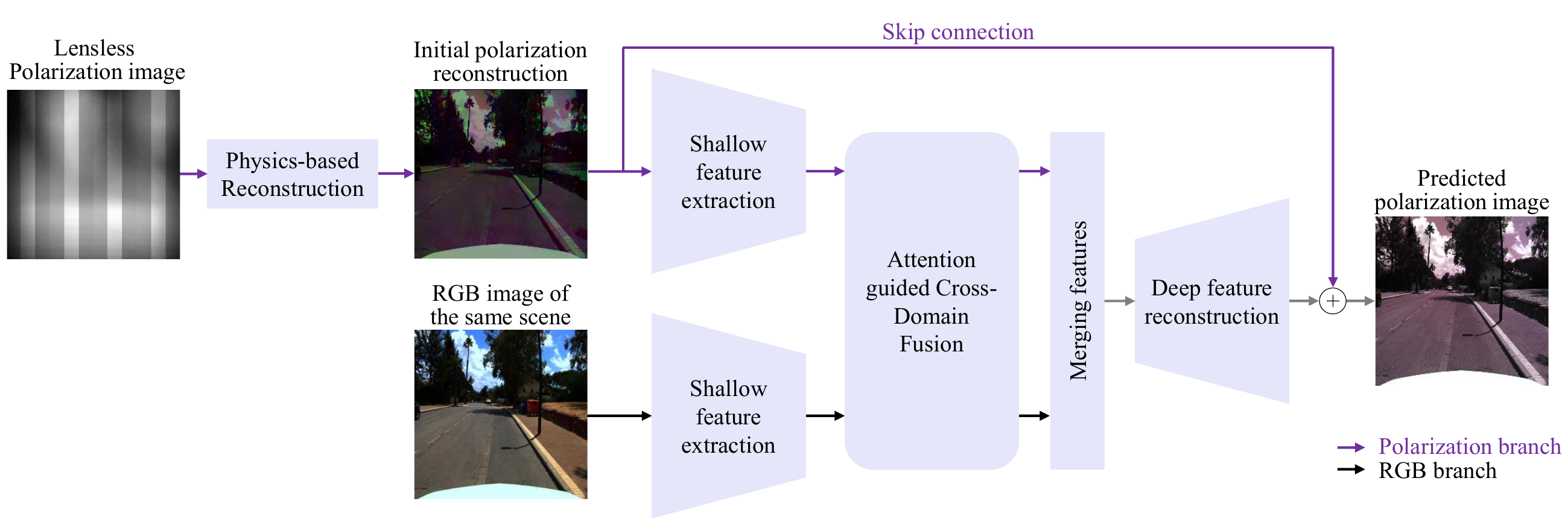

Overview of the proposed RGB-guided reconstruction pipeline: Stage 1 FISTA/ADMM, Stage 2 cross-domain fusion
Overview of the proposed RGB-guided reconstruction pipeline. The process consists of two stages: (1) polarization intensity images (color or grayscale) are reconstructed from lensless measurements using a physics-based algorithm (FISTA/ADMM); and (2) the initial reconstruction and a registered RGB image of the same scene are separately encoded and fused through cross-domain attention to produce a refined polarization reconstruction. For visualization, the grayscale reconstructions at three polarization angles (0°, 45°, 90°) are mapped to the R, G, and B channels. The pipeline is compatible with more general input configurations.

Contributions

Results

Each polarization grayscale triplet (0°, 45°, 90°) is visualized as an RGB composite.

Real lensless data

Qualitative results on real lensless polarization data (3-angle grayscale). Each reconstructed polarization triplet (0°, 45°, 90°) is visualized as an RGB composite. Note the significant improvement in the structural details achieved by RGB guidance.

RGB (guide) FISTA recon. FISTA + Transformer Ours Reference
RGB guide, horizontal speaker scene FISTA reconstruction FISTA plus Transformer Our RGB-guided result Reference polarization
RGB guide, vertical speaker scene FISTA reconstruction FISTA plus Transformer Our RGB-guided result Reference polarization
RGB guide, metals scene FISTA reconstruction FISTA plus Transformer Our RGB-guided result Reference polarization
RGB guide, plastic bag scene FISTA reconstruction FISTA plus Transformer Our RGB-guided result Reference polarization

Quantitative comparison

Three-angle grayscale configuration (PSNR ↑ / SSIM ↑ / LPIPS ↓). We compare against physics-based baselines (FISTA, ADMM), a learning-based baseline derived from our architecture without RGB guidance (FISTA + Transformer), and two additional learning-based methods: FlatNet (Khan et al., 2020) and PolarAnything (Zhang et al., 2025). PIP is the training domain; UPLight and ZJU-RGB-P are unseen evaluation sets.

Method PIP UPLight ZJU-RGB-P
FISTA 13.87 / 0.45 / 0.45 16.72 / 0.26 / 0.53 14.50 / 0.46 / 0.44
FlatNet 21.57 / 0.68 / 0.45 10.78 / 0.27 / 0.98 16.73 / 0.54 / 0.57
PolarAnything (RGB) 22.02 / 0.66 / 0.29 11.98 / 0.40 / 0.93 19.96 / 0.62 / 0.38
PolarAnything (FISTA) 21.51 / 0.64 / 0.31 11.84 / 0.36 / 0.98 19.05 / 0.58 / 0.42
FISTA + Transformer 28.85 / 0.88 / 0.12 17.93 / 0.44 / 0.53 27.20 / 0.89 / 0.19
Ours (FISTA input) 35.13 / 0.97 / 0.03 20.49 / 0.52 / 0.32 31.19 / 0.97 / 0.07

FlatNet and PolarAnything struggle under the partial polarization sampling of lensless measurements and show limited generalization to unseen datasets. Our method consistently outperforms all baselines, recovering richer high-frequency details and improving structural fidelity. See the paper for full results including the four-angle RGB configuration, ADMM variants, PSF robustness, fine-tuning, and ablation studies.

Simulated datasets

Qualitative reconstruction results on UPLight and ZJU-RGB-P. Columns: RGB guidance, FISTA reconstruction, FISTA + Transformer w/o RGB, our full RGB-guided model, its fine-tuned version, and the ground-truth polarization image. Each polarization grayscale triplet (0°, 45°, 90°) is visualized as an RGB composite. Note how the RGB guidance improves the high-frequency recovery.

RGB (guide) FISTA pred FISTA + Transformer Ours Ours (fine-tuned) GT
UPLight UPLight sample 1 RGB UPLight sample 1 FISTA UPLight sample 1 FISTA Transformer UPLight sample 1 ours UPLight sample 1 fine-tuned UPLight sample 1 ground truth
UPLight sample 2 RGB UPLight sample 2 FISTA UPLight sample 2 FISTA Transformer UPLight sample 2 ours UPLight sample 2 fine-tuned UPLight sample 2 ground truth
ZJU-RGB-P ZJU-RGB-P sample 1 RGB ZJU-RGB-P sample 1 FISTA ZJU-RGB-P sample 1 FISTA Transformer ZJU-RGB-P sample 1 ours ZJU-RGB-P sample 1 fine-tuned ZJU-RGB-P sample 1 ground truth
ZJU-RGB-P sample 2 RGB ZJU-RGB-P sample 2 FISTA ZJU-RGB-P sample 2 FISTA Transformer ZJU-RGB-P sample 2 ours ZJU-RGB-P sample 2 fine-tuned ZJU-RGB-P sample 2 ground truth

Pretrained models

Stage II checkpoints trained on FISTA Stage-I reconstructions from PIP. Download from Hugging Face. Usage details are in the repository README.md.

Checkpoint file net_type use_guide Description
grayscale_with_guide.pth swinfusionSR_GRAYSCALE true Grayscale polarimetric, RGB-guided
grayscale_no_guide.pth swinfusionSR_GRAYSCALE false Grayscale polarimetric, no guide
color_with_guide.pth swinfusionSRcolor true Color polarimetric, RGB-guided
color_no_guide.pth swinfusionSRcolor false Color polarimetric, no guide

Set path/pretrained_netG in your option JSON to a downloaded .pth or use wget as in the README.

Citation

@misc{kraicer2026guidedlenslesspolarizationimaging,
  title         = {Guided Lensless Polarization Imaging},
  author        = {Noa Kraicer and Erez Yosef and Raja Giryes},
  year          = {2026},
  eprint        = {2603.27357},
  archivePrefix = {arXiv},
  primaryClass  = {eess.IV},
  url           = {https://arxiv.org/abs/2603.27357}
}

Acknowledgements

We thank Tomer Pee’r and Michael Baltaxe (General Motors) for providing a suitable version of the PIP dataset, and Shay Elmalem for fruitful discussions. This work was partially supported by the Center for AI and Data Science at Tel Aviv University (TAD) and by ERC Grant No. 10111339.

The physics-based reconstruction (Stage I) was inspired by Spectral DiffuserCam (Monakhova et al., 2020). The refinement network (Stage II) builds on SwinFuSR (Arnold et al., 2024).
